pfSense (or own router) and Vigor 130 ADSL modem

MickeMannen
Investigator
Investigator

‎05-03-2021 08:35 AM - edited ‎05-03-2021 09:06 AM

Hi All



I used to have a lot of issues with latency when using my own router and the Vigor 130 ADSL modem. After some checking i got it working (so far no issues at all and online gaming works perfectly).

I assume that you know how to set up your own router etc.

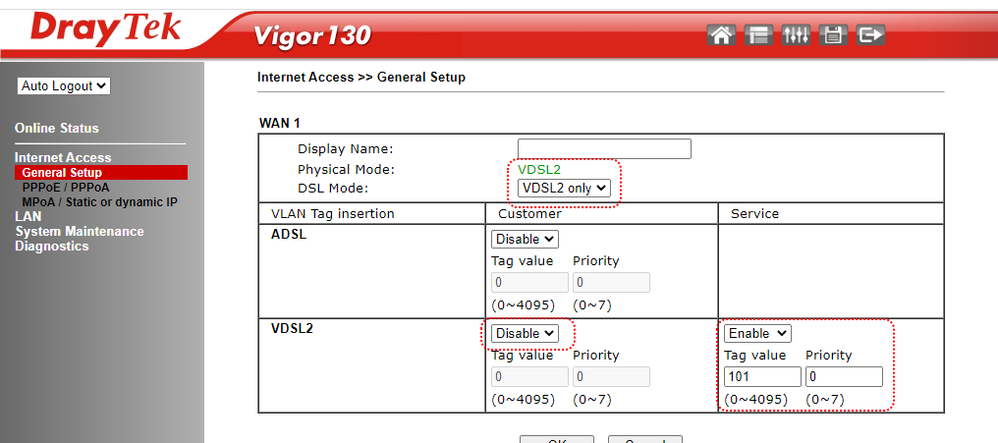

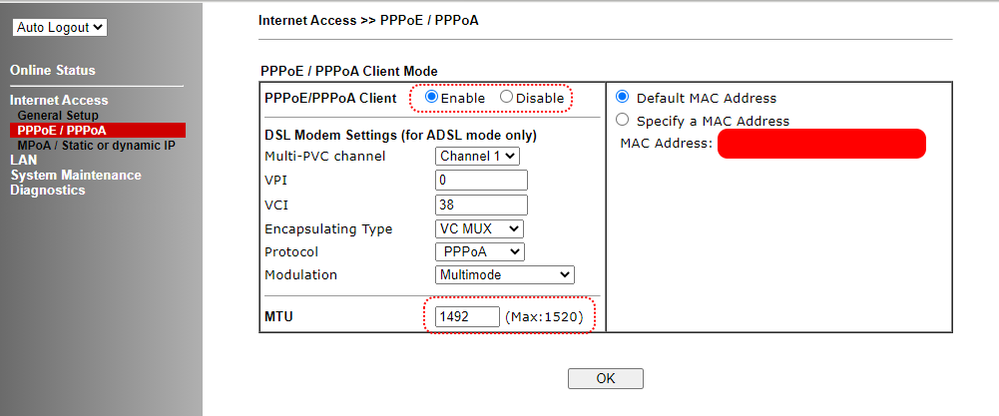

For settings on the Vigor 130 modem please see these pictures - i believe the key was MTU 1492.

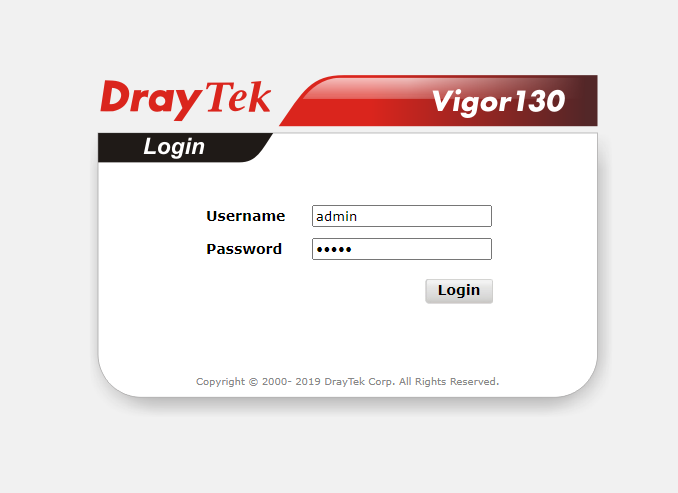

login.png Default username and password is admin/admin at 192.168.2.1





Good Luck!



//Micke

0 Helpful
8 REPLIES 8
Mustrum
Ace Contributor
Ace Contributor

‎05-03-2021 09:52 AM

Your title and text talks about ADSL, yet the modem seems to be set for VDSL.





0 Helpful
XRaySpeX
Grand Master
Grand Master
In response to Mustrum

‎05-03-2021 11:50 AM - edited ‎05-03-2021 11:52 AM

The DrayTek Vigor 130 is a ADSL2+/VDSL Modem.



The Key setting on any Fibre modem is VLAN ID or Tag = 101.

If you think I helped please feel free to hit the "Thumbs Up" button below.

To phone EE CS: Dial Freephone +44 800 079 8586 - Option 1 for Mobile Phone & Mobile Broadband or Option 2 for Home Broadband & Home Phone

ISPs: 1999: Freeserve 48K Dial-Up => 2005: Wanadoo 1 Meg BB => 2007: Orange 2 Meg BB => 2008: Orange 8 Meg LLU => 2010: Orange 16 Meg LLU => 2011: Orange 20 Meg WBC => 2014: EE 20 Meg WBC => 2020: EE 40 Meg FTTC => 2022: EE 80 Meg FTTC (no landline number)
MickeMannen
Investigator
Investigator
In response to Mustrum

‎06-03-2021 07:51 AM

Correct - in my world it is the same slow solution!

0 Helpful
Mustrum
Ace Contributor
Ace Contributor
In response to MickeMannen

‎06-03-2021 11:03 AM

But the settings are different for ADSL and VDSL, so not sure what point your post is trying to make.

0 Helpful
MickeMannen
Investigator
Investigator
In response to Mustrum

‎06-03-2021 11:49 AM

Hi!



My point was to help others with the same issues that i used to have. The default settings of the DrayTek Vigor 130 VDSL modem gave me low latency from time to time (every 15min to 30 min). When i did the update this was solved!



Unfortunately I can't update the header for the first post or even remove it.

0 Helpful
DSL3MZP
Explorer

‎10-05-2021 02:58 PM

I have the same setup but can’t get an ip address in pfsense. Any advice on what settings you used in pfsense to get this working?

0 Helpful
MickeMannen
Investigator
Investigator
In response to DSL3MZP

‎14-05-2021 07:09 PM

Hi!



Still a problem? Reply here and i will try to guide you



//Micke

0 Helpful
DSL3MZP
Explorer
In response to MickeMannen

‎14-05-2021 08:23 PM

Hi Micke,



would love some help if you have the time and knowledge!

Regards



Matt

0 Helpful
