Pppoe not Working

[Olifab]

Hi so I'm trying to use my Tp-link Vr2100 modem with my ee modem. I have the ee router plugged into the DSL port and then a network cable coming from network port 1 on the ee modem into the WAN port on the tp-link modem and the tp link modem has been switched to "Wirless Router Mode" . But I've been trying to setup the tp-link router up but the username and password doesn't seem to work, the username and password I'm using is: bthomehub@btbroadband.com and BT (also tried no password). But if I set it up with Dynamic IP it work fine.

FYI the ee route has a Internet connection and works fine and all the cable are fine. I was also using the tp-link router with my previous Internet provider for many years via the DSL port and user the username and password for Plusnet.

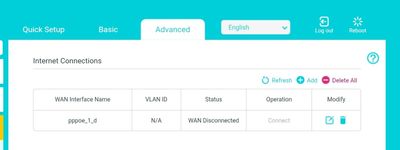

I have attached two screenshots one of it setup as a dynamic ip and the setting in trying to use for pppoe!

It's never been this hard in the past....

 

 

[XRaySpeX]

The PPPoE Auth is only done at the initial EE router, not also at the secondary TP-Link router. The latter's connection type should be Ethernet & it should be connected at a LAN port, not the WAN port.

[Olifab]

So I plug the ee router into one if the LAN ports on the tp-link router?

[XRaySpeX]

Yep!

[Olifab]

Okay I'll try this later otherwise I'll kick everyone off the WiFi lol!

[JimM11]

@Olifab You can wan - lan connect, your Tp would need to be routing and you will/would be double NAT control but possibly not too many problems you would just need to check!

[XRaySpeX]

That's what we accuse our providers of doing, playing with their live online systems while their users are online. LOL 😉!

[XRaySpeX]

Yes, @JimM11 , I'm trying to avoid the complications of multi-LANs & double NAT'ting.

[JimM11]

@XRaySpeX No problem!

[Olifab]

Hi so I've tried this and it doesn't work. Is there anything else I would need to do?
