Ethernet sockets not working

YakeYake · ‎19-09-2022

Hi!

I moved my EE broadband to a new home and upgraded the speed to 100Mb/s a few weeks back. There was an engineer who came in and set up the boxes in my house.
Right now my Smart Hub must be connected to the port in a fairly big white box that's placed in a cupboard near the front entrance.

The red ethernet cable here is connected directly to my Smart Hub.

There are ethernet sockets in the walls in 2 rooms and one in said cupboard to which I tried connecting the Smart Hub but it doesn't work -- it say "Cable not plugged in" when I check its status connecting to the wifi.

What do I need to do in order to make these wall sockets work?

XRaySpeX · ‎19-09-2022

Yes, I would expect a house-wired Ethernet network to incorporate an unmanaged switch to make it work.

If you think I helped please feel free to hit the "Thumbs Up" button below.

To phone EE CS: Dial Freephone +44 800 079 8586 - Option 1 for Home Broadband & Home Phone or Option 2 for Mobile Phone & Mobile Broadband

ISPs: 1999: Freeserve 48K Dial-Up > 2005: Wanadoo 1 Meg BB > 2007: Orange 2 Meg BB > 2008: Orange 8 Meg LLU > 2010: Orange 16 Meg LLU > 2011: Orange 20 Meg WBC > 2014: EE 20 Meg WBC > 2020: EE 40 Meg FTTC > 2022:EE 80 Meg FTTC SoGEA > 2025 EE 150 Meg FTTP

pip11 · ‎19-09-2022

You don't need a switch. There are 2 ethernet ports on the socket under the ONT. Each port supplies one room only. If the port you've connected to doesn't supply a connection to your PC just plug in to the other port.

YakeYake · ‎19-09-2022

@pip11 There's only 1 port underneath the ONT. The other socket is a DSL or something.

@XRaySpeX I would've thought so, too, but it doesn't seem like it is 😞

pip11 · ‎20-09-2022

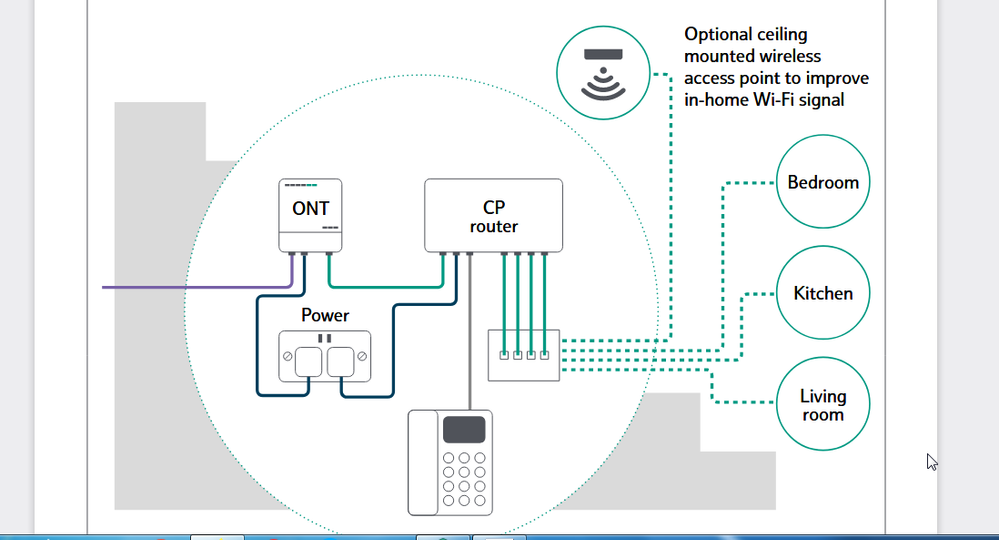

Then the devolper totally ignored Openreach guidelines. NB the telephone connection shown has now been ceased.

Image will show once approved by mods.

The full developer handbook is available HERE.
